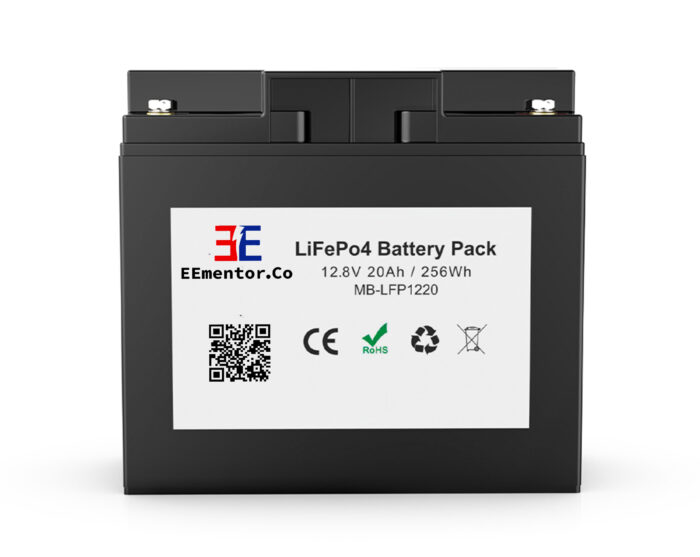

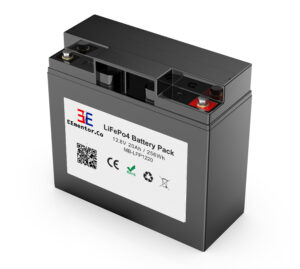

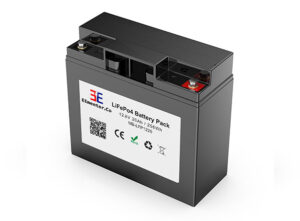

12V 20Ah LiFePO4 Battery – Replace Lead Acid Batteries

Description

The EEmentor 12V 20Ah battery is a robust and efficient replacement for traditional lead-acid batteries. This deep-cycle lithium iron phosphate (LiFePO4) battery offers exceptional power, reduced weight, and enhanced durability. Ideal for a wide range of applications, it ensures reliable performance for all your power needs.

Applications

• Flashers
• Fish finders
• Electronic boating devices
• Ice fishing
• Camping
• Scooters
• Emergency lighting
• Solar robotics
• Remote power
• UPS security backup systems
• Communications
• Golf Cars

Key Features

• Higher Energy Output: Efficiently powers high-consumption devices, outperforming traditional lead-acid batteries.
• Fast Charging & Discharging: Enjoy high efficiency and longer cycles with minimal maintenance required.
• Durability: Built with safe and reliable LiFePO4 components and an integrated Battery Management System (BMS).

Battery Management System (BMS)

EEmentor batteries are equipped with a BMS that optimizes and analyzes each cell during charge and discharge. This system protects the battery from over-charging, over-discharging, and short circuits, ensuring operational safety and accuracy.

Optional Communication Protocols

• SMBus
• CAN
• WIFI
• Bluetooth

Protection Features

• Charging Over-Voltage Protection
• Charging Over-Current Protection
• Charging Over-Temperature Protection
• Charging Low-Temperature Protection
• Discharging Over-Current Protection

Technical Specifications

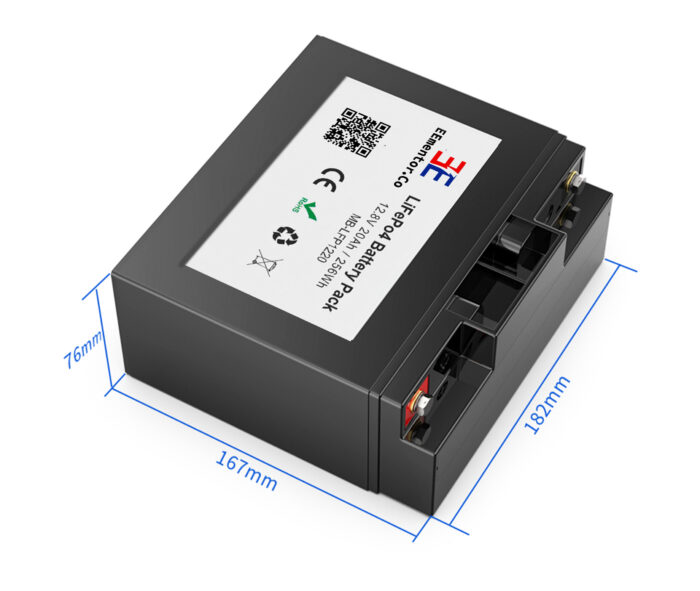

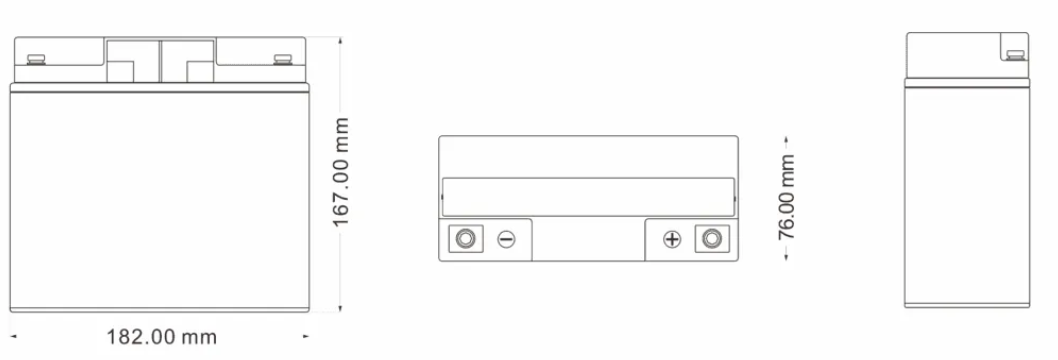

• Dimensions

Performance Graphs

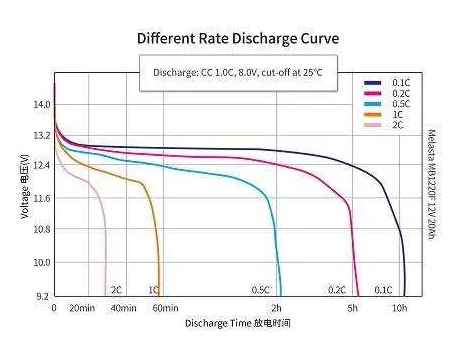

• • Different Rate Discharge Curve

  • CC 1C, 8.0V, cut-off at 25℃
•

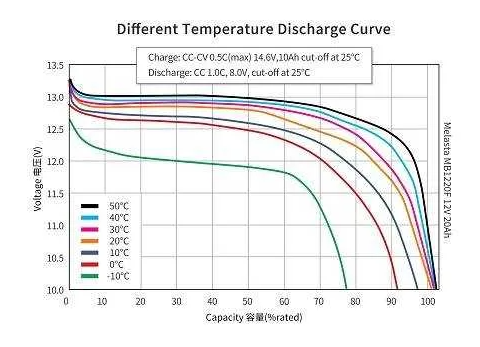

  • Different Temperature Discharge Curve

  • Charge CC-CV 0.5C(max) 14.6V,12Ah cut-off at 25℃
  • Discharge: CC 1.0C, 8.0V, cut-off at 25℃
  •

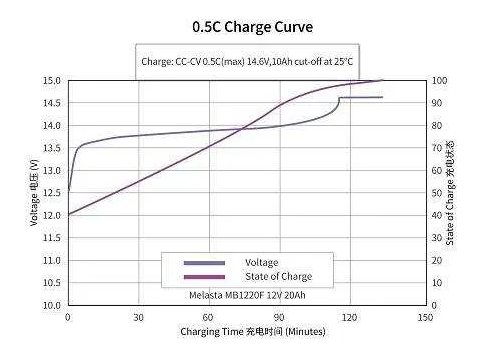

    • Charge Curve

    • Charge CC-CV 0.5C(max) 14.6V,12Ah cut-off at 25℃
    •

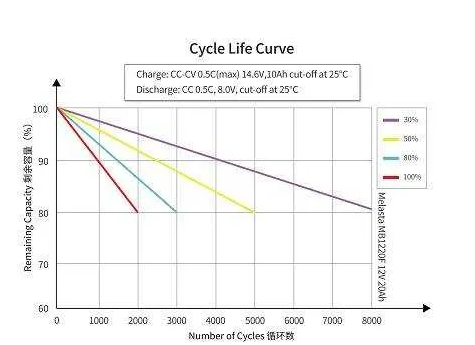

    • Cycle Life Curve

    • Charge CC-CV 0.5C(max) 14.6V,12Ah cut-off at 25℃;
    • Discharge: CC 0.5C, 8.0V, cut-off at 25℃
    •
